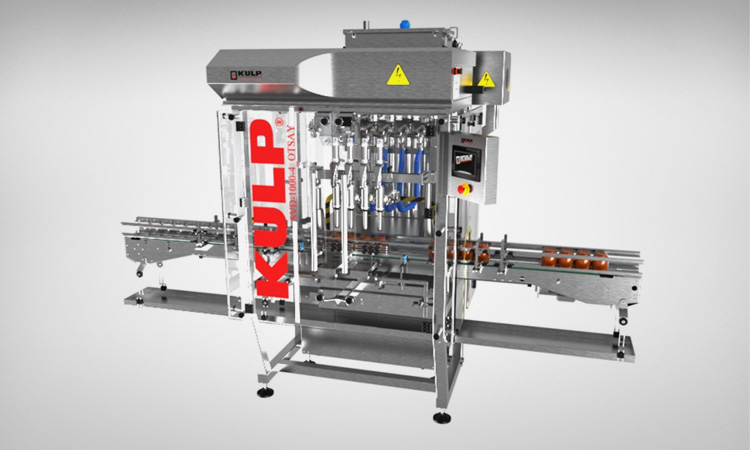

Model No.: 4 Head Filling Machine | Made in Turkey, Kulp Packaging Machinery
Servo motor controlled volumetric filling system & diving nozzles • liquids, semi liquids, viscous & products with particules. • capacity: 2400 packages per hour TYPES OF FILLED PRODUCTS: Chocolate Spread, Peanut Butter, Hazelnut Hash, Honey & Cream Honey, Mayonnaise, Ketchup, Mustards, Sauces, Jam & Marmalade, Tomato Paste, Pepper Paste, Cream Cheese, Cheese Spread, Labne, Yogurt, Milk, Ayran, Clotted Milk, Molasses, Vinegar, Balsamic Vinegar, Syrups, Pomgrdenade Concentrate, Edible Oils, Pre-cooked Meals, American Salad, Mashed Vegetables, Tapenade, Glaze, Toppings, Soups, etc. Cosmetic Oils, Cosmetic Creams, Shampoo, Conditioner, Liquid Soap, Body-wash, Hair Cream, Body Lotion, Peelings, Face and Body Mask, Waxes, Gels, Vaseline (Petroleum Jelly), Foundation, BB Cream, etc. Ointments, Lotions, Glycerin, Disinfectant, biomedical and sanitary products, veterinary products, etc. Paints, Glue (PVA), Hydrogen peroxide, ink, Fertilizers, Pesticides, Varnish, Household Product, Engine Oil, Glass cleaner, Anti-Freeze, etc.
| For the four heads filling machine, the capacity varies according to the filling range as below (specified according to the naximum filling range): | |||||||
| Machine Name | Filling Range | Capacity | Working mode | ||||
| SVD1000-4 OTSAY | 100-1000ml | 2400 | Servo-motor | ||||
| SVD2000-4 OTSAY | 200-2000ml | 2000 | Servo-motor | ||||
| SVD5000-4 OTSAY | 500-5000ml | 1680 | Servo-motor | ||||
| - Primes the product from a 100 liters hopper with an automatic level control system. | ||||||
| - The level control system is synchronized with the transfer pump to start or stop. | ||||||
| - All the parts including the main valve and the nozzles are connected by tri-clamps for an easy disassembling for the cleaning process. | ||||||
| - The volume adjustment can be done through the touch screen | ||||||
| - There are four interchangable filling nozzles which are designed for liquids and viscous products, with an anti dropping system. | ||||||
| - Adjustable speed diving nozzle for foamy products. | ||||||
| - Lighted cabin with 10mm polycharbon covers and security switches on the doors. | ||||||
| - No container-No fill System. | ||||||
| - User friendly touch screen interface available in different languages. | ||||||
| - 3 meters convoyer with adjustable side rails for various sizes of packages. | ||||||
| - The working system is pneumatic and electronic. It operates with 6 bars compressed air. | ||||||
| - The consumption of air is 600 lt/minute when it’s performing with the maximum volume and the maximum speed. | ||||||
| - The electrical connection is three phase (380v / 50-60 Hz) | ||||||
| - Optional C.I.P. suitable cleaning system. | ||||||
| - Optional Double Jacketed Hopper. | ||||||
| - Optional Agitator. | ||||||
| -
Optional Filling Piston Back Side Cleaning System. MATERIALS USED ON THE FILLER OPERATING TEMPERATURE |
||||||
Note: Technical specifications are subject to change without prior notice due to ongoing research & developments.
Features :
· FILLING ACCURACY: ± 1%
. ANTI DROPPING SYSTEM ON THE FILLING NOZZLES
· VARIOUS PACKAGING SIZES AND SHAPES
· HOT AND COLD FILLING
. COMPATIBLE TO THE FOOD HYGIENE STANDARDS
